Just a Pattern
-
Took a a gradient from another App with a screenshot and use
this raster graphics then to colorize a bunch of strokes with the Repeater.This time no Style Picker Feature where used.
I create a a color Palette instead from that bunch of strokes
(create Palette from selected Objects)
and colored a Swirling Lines Shape after converted it to curves
via Colorize with that new palette
-
Made in Vectorstyler, recreate a pattern i found on the Internet
mine look a bit different but i am fine with that
.
.
For anyone who is interested, you need to split the Line
in different pieces to create this pattern
-
I more or less replicated a pattern I found online.
I couldn't resist using the "Along Stroke" feature
in VectorStyler's gradient editor.
-
This was inspired by "string art"; I wanted to experiment with creating it
as vector graphics and applying gradients to the individual paths to see
what kind of patterns would emerge.The String Art was made in Nodebox because its very easy to
create Point/Node Pattern with it.
https://www.vectorstyler.com/forum/topic/4119/a-kind-of-patternnodes-for-windows-free-win-macThe coloring was created in VectorStyler; which allows to create gradients along a path
and allows them to be applied to the design's paths using the "Style Picker" group function.
https://www.vectorstyler.com/forum/topic/5851/a-style-picker-tool-feature-and-a-few-strokes
-
Another Variation of it
-
@Subpath These graphics look quite unique. I’m curious: can VectorStyler create them at the moment?
-
I think some of the Designs would be possible in Vectorstyler
all you need is a straight Line, rotate it a bit and copy and repeate itBut i think it is way easier to do it in Nodebox because one would have more Options
when you could set single Points and connect those Points with a Line i dont think
that Vectorstyler could set single points.To set single points and connect them its very easy in Nodebox. (Nodebox is free, PC and Mac
in the mean time there is also a Version for Silicon based Macs )
All you need is a Path and a Point Node which say how much Points a Path should have.
This way you could create all kind of Point Patterns and connect them.
.
.
Here how the base Structure is made
.
.and here the whole Design
-
Some additional notes regarding Points in NodeBox:

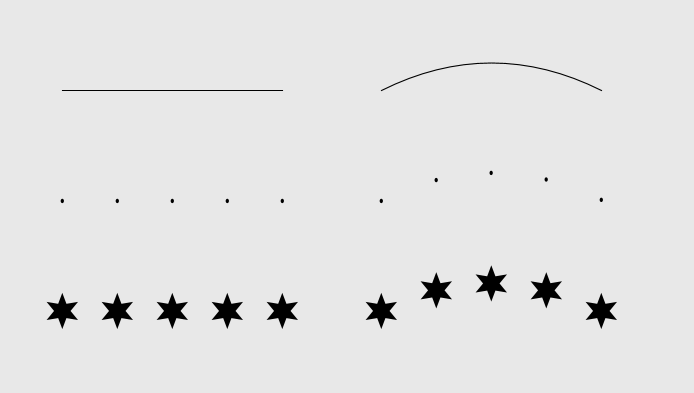

Points serve not only to connect lines or paths.
They can also be used to specify positions for shapes or designs.And since this all is Node-based in Nodebox, it is very easy to replace
one shape with another or to modify the design.Not to forget that Nodebox is a pretty good compainion to Vectorstyler
NB has .SVG and PDF Export and you could import .SVGs
-
@Subpath This is a node-based program, which I’m afraid won’t work for me. Just like creating materials in C4D, it requires connecting nodes. This kind of workflow isn’t my strong suit.
-
No problem if it doesn't work for you or isn't a good fit.
I only use it for specific tasks myself. Creating vector graphics using nodes certainly
has its merits and its fun to use. I didn't find the basic principles hard to learn—and
I’m really not the brightest bulb. -
The design was created using Nodebox (which is free).
I tried to copy and scale it within VectorStyler, but I couldn't find
a way that produced a good result.However, the coloring was done in VectorStyler—and this is where
the "Style Picker Group" feature really shines. The design consists of 80 objects;
I created a single stroke, applied a gradient along a path, and then duplicated
it until I had 80 copies.Finally, I grouped the design elements and the strokes, and then applied the styles
to the whole set using the Style Picker.
-
@Subpath said in Just a Pattern:
I tried to copy and scale it within VectorStyler, but I couldn't find
a way that produced a good result.VectorStyler can actually create this. I'll take some time to record a video
-
No problem, just take your time.
I’m very interested to see how you solve this—
and I imagine other users are, too.In my own attempts, VectorStyler always distorts the shapes being duplicated;
maintaining consistent spacing between them also proves to be an issue.Here how the Result looks in Nodebox
-
@Subpath said in Just a Pattern:
This is quite easy, just use the Blend Tool
This is the specific example I was referring to for the video I plan to record.
-
I wouldnt recommend to take the Blend Tool for the first one.Made a little Tutorial how i made this one which i made in Vectorstyler now
Here the Link:
https://www.vectorstyler.com/forum/topic/5951/a-little-tutorial-how-i-made-and-colored-the-curved-polygon-in-vectorstyler
-
I first tried duplicating a line along a path with the Repeater it was close, but not quite right. In the end, I used a Grid shape with an Envelope effect. Attached are a brief video demo and the source file for reference.
https://drive.google.com/file/d/1PXxuUuBCzqWX3qU6mv5T4FR148ZrN8Wa/view?usp=drive_link
-
That’s a really clever solution!
I never would have thought of that myself.
I love and admire your ideas and your inventiveness.
.
.It’s clear that this structure could also be replicated in VectorStyler
in one way or another.However, I chose NodeBox for this because it allows me to stay as close as possible
to the concept of "string art." String art requires nails and a piece of string.In VectorStyler, a piece of string can simply be represented by a straight line. Nails, on
the other hand, cannot be implemented there in the same way they can in NodeBox.In NodeBox, there is a "Point" Node for this purpose. This "Point" Node converts vector graphic
nodes into coordinates. These coordinates can then be passed to a "Line" Node, creating a string
that runs between two nails/Points.All in all, this results in an extremely flexible basic structure that can be used to create a wide variety
of string art designs. More or less just like in real life.Incidentally, the number of Nails can be controlled very easily via the Resample node.
Nodebox and VectorStyler work together wonderfully. Vector graphics can be easily exchanged
via the .SVG format—though Nodebox can also export vector graphics as .PDF files.
-
For anyone who is interested here the Nodebox Nodetree
for the Base
.
.
.
and the first structure
-
@Subpath Node-based apps can indeed create some very unique patterns through different node combinations, but combining different tools in VectorStyler is also super versatile! It is possible to build this with lines using the Transform tool or the Repeater, but the drawback is that it cannot remain non-destructive. As a result, making tweaks and adjustments isn't quite as convenient as in node-based workflows. Attached is a screenshot demonstrating the Repeater approach.
-
It can also be done very quickly using Transform, though it's still a destructive effect.
